Universal Joints
documents
High precision universal joint, complying according with DIN 808/7551.
Every execution is made by 2 hubs with forks and a central block.
Between pins and bores there are:
- P series: 4 bearings with solid pins
- E series: with sliding bushes
- H series: with needle roller bearings
In the central blocks of P and E series there are the holes for the lubrication.
For the H series (high-speed applications) no lubrication is needed, because the roller bearing are maintenance free.
P series joints is designed for high precision and lifetime applications.

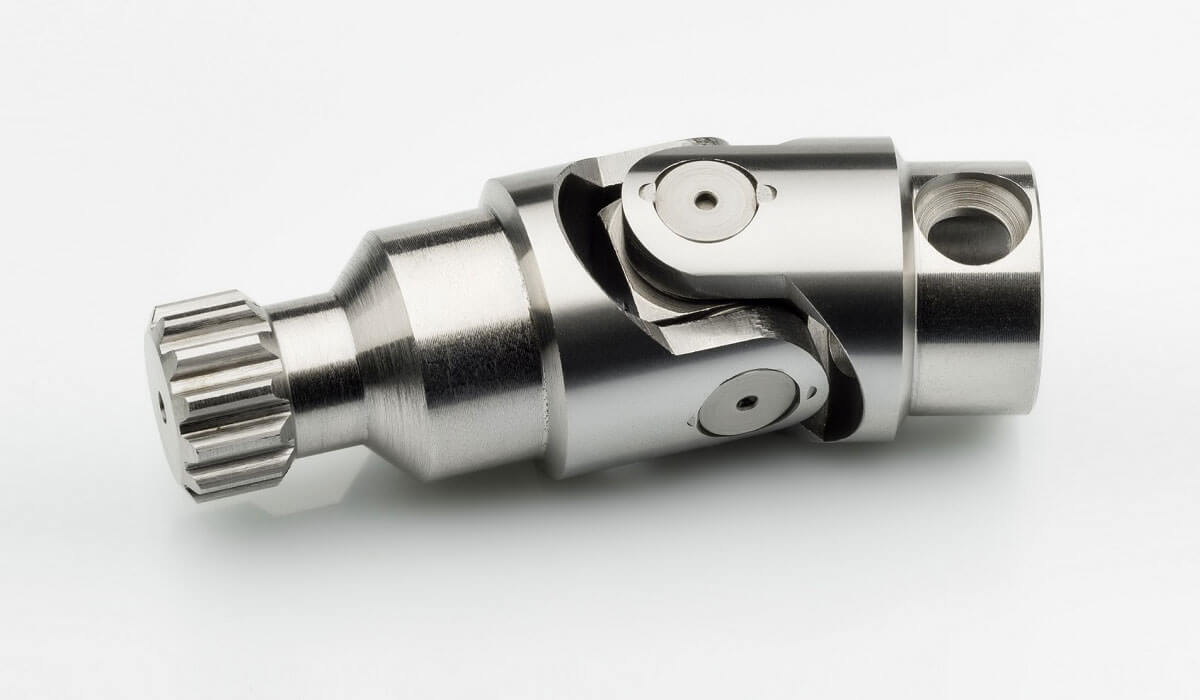

Every execution can be supply with extensible shaft.
Universal joint available executions

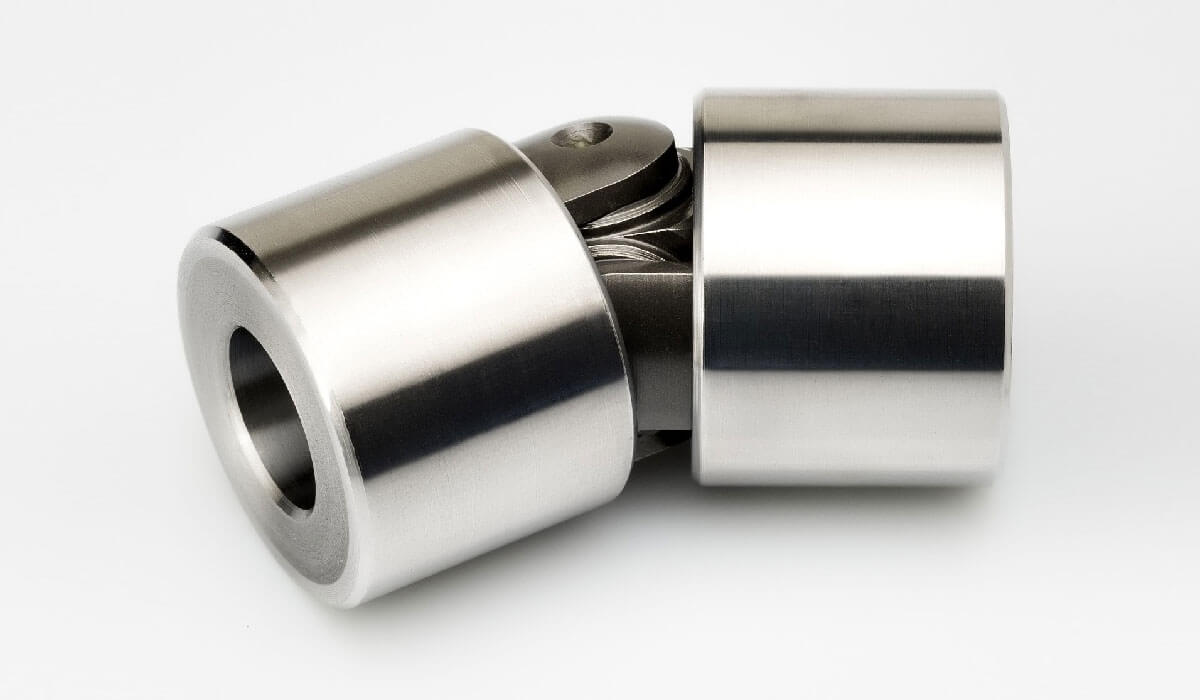

P series universal joint with bearings and solid pins for High wear resistance and precision. In according with DIN 808.
Joints with sliding bushes are available in 2 versions:
- Type “E” to DIN 808, type “EB” to DIN 808/7551
- Type “ER” with quick release

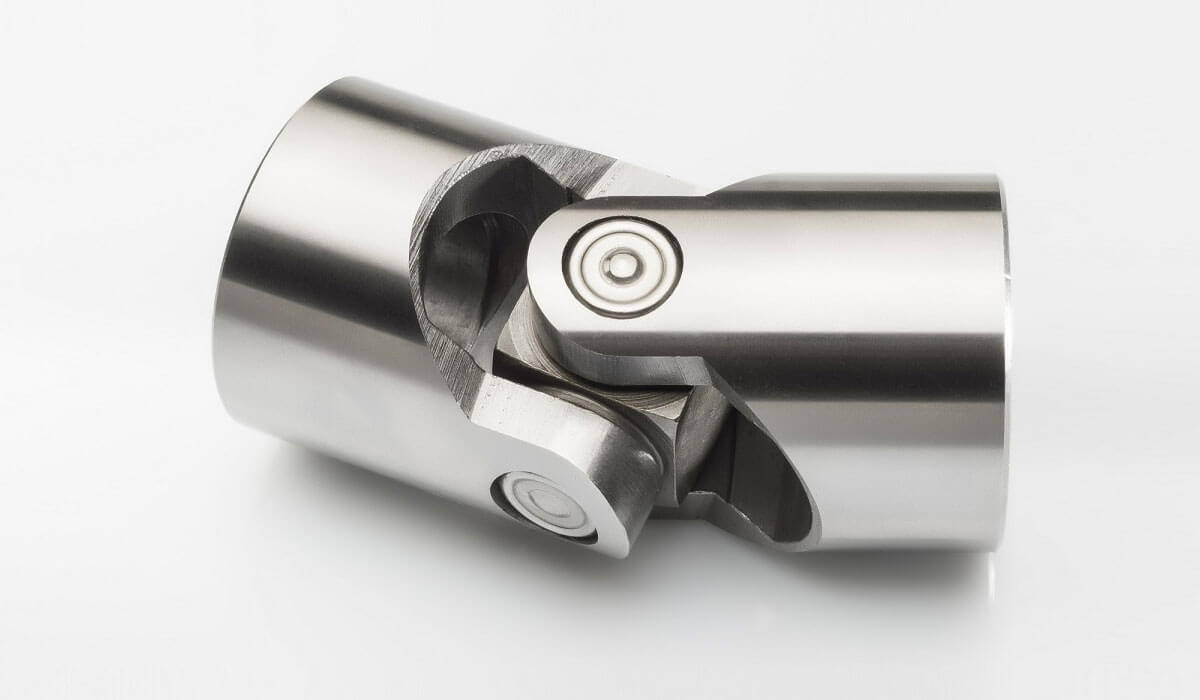

Type “H” are with roller bearings. Available in 2 versions:
- Type “H” to DIN 808, type “HB” to DIN 808/7551
- Type “HR” with quick release
Stainless steel joints. Max. temperature 200 °C. In according with DIN 808.
It is possible to supply, custom joints with turning, milling, internal and/or external drilling, special
lengths and tolerances on request.
For information, contact Our technical department.
lengths and tolerances on request.
For information, contact Our technical department.

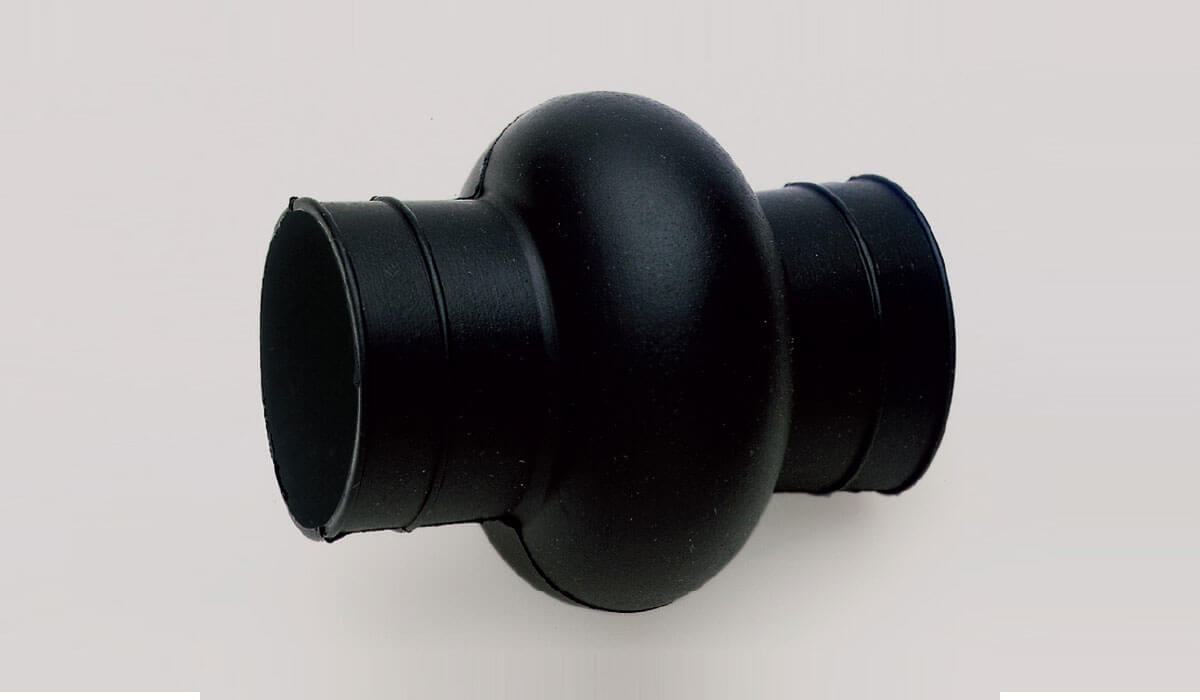

Protection muffs in special neoprene rubber. Resistant to acids, oils, greases, dust and moisture.
Filled with grease, ensure constant lubrification.
Filled with grease, ensure constant lubrification.
Protection muffs in special neoprene rubber. Resistant to acids, oils, greases, dust and moisture.
Filled with grease, ensure constant lubrification.
Filled with grease, ensure constant lubrification.
